Home / DC/DC Converters / DC/DC PCB Mount Power Supply / 43FKC08-xSzW / 43FKC08-110D12W

Add to shortlist

Compare

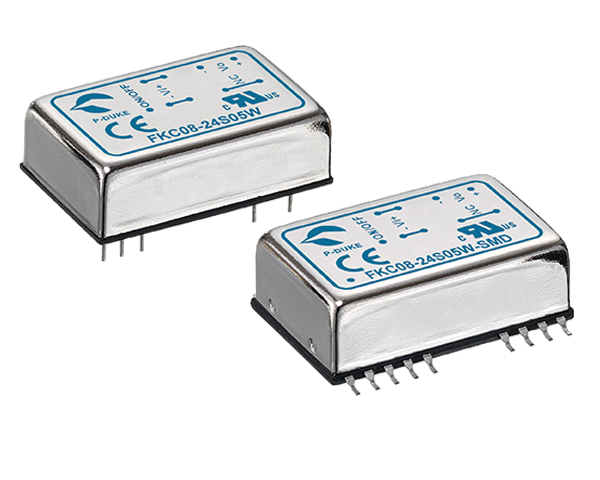

43FKC08-110D12W

DC/DC PCB Mount Power Supply

Ideal Power FKC08-110D12W 12V DC 0.333A Dual output 7.992W model. Certified to UKCA, CE, cURus, RoHS, REACH & EN 62368-1/IEC 62368-1/UL 62368-1 Standards and complies with the relevant Efficiency Regulations. These are primarily used in ITE, Audio & Video, Railway Industries and customised solutions are available upon request.

Features

4:1 Wide Input Range
Approved to IEC/UL/EN 62368-1 & EN 50155
Approved to UKCA, CE, RoHS & REACH
Efficiency up to 88%
EMC Class A & B
OCP, SCP & UVP
Operating Temperature Range: -40°C~105°C
Single & Dual 8W Output Models

Basic Specification

Product Type	DC/DC Converters DC/DC PCB Mount Power Supply
Input Voltage	43~160V DC
Primary Output	12V DC 0.333A
Secondary Output	-12V DC -0.333A
Output Power	8W
Number of Outputs	Dual
Efficiency	85.0%
Output Connector	SMD, DIP
Dimensions	ModelDependent
Industry	ITE, Audio & Video, Railway
Standards	EN 62368-1, IEC 62368-1, UL 62368-1

Pdf Spec Sheet

3D Drawings

Other Models in this series

Compare Products 0/4

Compare	Model	Output Voltage	Current	Power	Additional Info
Compare	43FKC08-110S3P3W	3.3V DC	2.4A	7.9W	Download Pdf
Compare	43FKC08-24S3P3W	3.3V DC	2.4A	7.9W	Download Pdf
Compare	43FKC08-48S3P3W	3.3V DC	2.4A	7.9W	Download Pdf
Compare	43FKC08-48D05W	5V DC	0.8A	8W	Download Pdf
Compare	43FKC08-48D12W	12V DC	0.333A	8W	Download Pdf
Compare	43FKC08-48D15W	15V DC	0.267A	8W	Download Pdf
Compare	43FKC08-48S05W	5V DC	1.6A	8W	Download Pdf
Compare	43FKC08-48S12W	12V DC	0.666A	8W	Download Pdf
Compare	43FKC08-48S15W	15V DC	0.533A	8W	Download Pdf
Compare	43FKC08-24D05W	5V DC	0.8A	8W	Download Pdf
Compare	43FKC08-24D12W	12V DC	0.333A	8W	Download Pdf
Compare	43FKC08-24D15W	15V DC	0.267A	8W	Download Pdf
Compare	43FKC08-24S05W	5V DC	1.6A	8W	Download Pdf
Compare	43FKC08-24S12W	12V DC	0.666A	8W	Download Pdf
Compare	43FKC08-24S15W	15V DC	0.533A	8W	Download Pdf
Compare	43FKC08-110D05W	5V DC	0.8A	8W	Download Pdf
Compare	43FKC08-110D15W	15V DC	0.267A	8W	Download Pdf
Compare	43FKC08-110S05W	5V DC	1.6A	8W	Download Pdf
Compare	43FKC08-110S12W	12V DC	0.666A	8W	Download Pdf
Compare	43FKC08-110S15W	15V DC	0.533A	8W	Download Pdf
