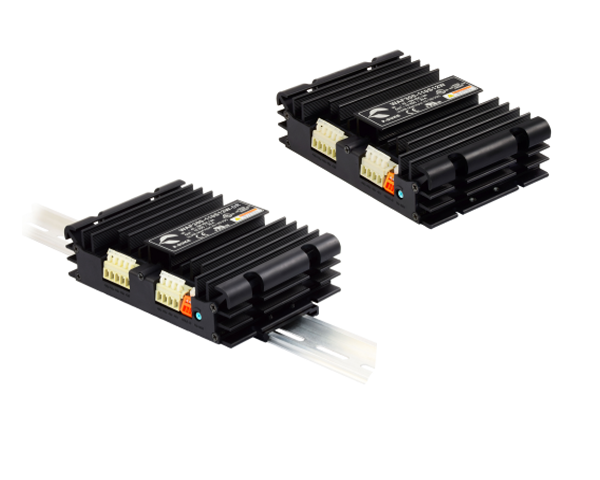

43WAF300-48S15W-DR
Enclosed Chassis Mount DC/DC Converter
Ideal Power WAF300-48S15W 15V DC 20A Single output 300W model. Certified to UKCA, CE, cURus, RoHS, REACH & EN 62368-1/IEC 62368-1/UL 62368-1 Standards and complies with the relevant Efficiency Regulations. These are primarily used in ITE, Audio & Video, Railway Industries and customised solutions are available upon request.
Features
- 4:1 Wide Input Range
- Approved to IEC/UL/EN 62368-1 & EN 50155
- Approved to UKCA, CE, RoHS & REACH
- Efficiency up to 92%
- EMC Class A
- OCP, OTP, OVP, SCP & UVP
- Operating Temperature Range: -40°C~105°C
- Single 300W Output Models
Basic Specification
| Product Type | DC/DC Converters DC/DC Enclosed Power Supplies |
|---|---|
| Input Voltage | 18~75V DC |
| Output | 15V DC 20A |
| Output Power | 300W |
| Number of Outputs | Single |
| Efficiency | 90.0% |
| Output Connector | Terminal Block |
| Dimensions | 4x6x1.86" |
| Industry | ITE, Audio & Video, Railway |
| Standards | EN 62368-1, IEC 62368-1, UL 62368-1 |
3D Drawings
Other Models in this series
| Compare | Model | Image | Output Voltage | Current | Power | Additional Info |
|---|---|---|---|---|---|---|
Compare |
43WAF300-110S28W-DR | |
28V DC | 10.8A | 299W | Download Pdf |
Compare |
43WAF300-110S48W-DR | |
48V DC | 6.3A | 300W | Download Pdf |
Compare |
43WAF300-48S12W-DR | |
12V DC | 25A | 300W | Download Pdf |
Compare |
43WAF300-48S24W-DR | |
24V DC | 12.5A | 300W | Download Pdf |
Compare |
43WAF300-48S28W-DR | |
28V DC | 10.8A | 300W | Download Pdf |
Compare |
43WAF300-48S48W-DR | |
48V DC | 6.3A | 300W | Download Pdf |
Compare |
43WAF300-110S12W-DR | |
12V DC | 25A | 300W | Download Pdf |
Compare |
43WAF300-110S15W-DR | |
15V DC | 20A | 300W | Download Pdf |
Compare |
43WAF300-110S24W-DR | |
24V DC | 12.5A | 300W | Download Pdf |
