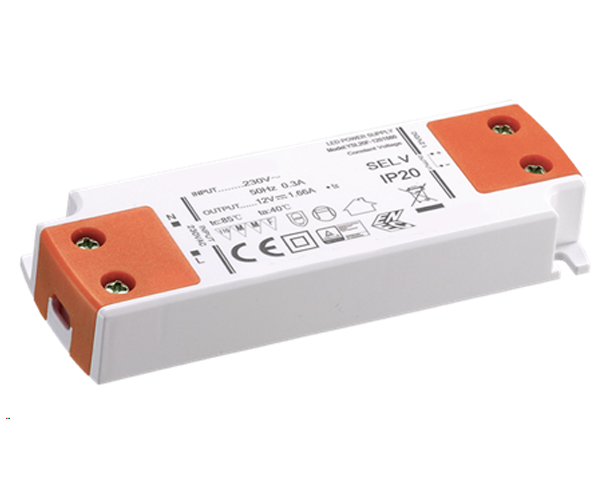

56YSL20F-1201250

IP20 LED Driver

Ideal Power 56YSL20F-1201250 12V DC 1.25A Single output 15W model. Certified to TUV-GS, RoHS, REACH & IEC 61347-1/IEC 61347-2-13 Standards and complies with the relevant Efficiency Regulations. These are primarily used in LED Lighting Industries and customised solutions are available upon request.

Add compare
Home LED Drivers Constant Voltage (CV) 56YSL20F-xy-zzW 56YSL20F-1201250

Features

  • Class II Protection Design
  • Compact Size
  • Constant Voltage (CV)
  • Input Voltage Range 220~240V AC
  • IP20
  • Protection OVP, OLP, SCP
  • Typical Efficiency 88%
  • Working Temperature -20°C ~ +45°C

Basic Specification

Product Type LED Drivers Constant Voltage (CV)
Input Voltage 220~240V AC
Output 12V DC 1.25A
Output Power 15W
Number of Outputs Single
Efficiency 88%
Output Connector Terminal Block
Dimensions 103x35.5x16.5mm
Industry LED Lighting
Standards IEC 61347-1, IEC 61347-2-13

Contact us

Reach out to discuss your power conversion requirements today.

Declaration

Click below to request the Series Declaration (PDF Download).

Request Declaration

Other Models in this series

Compare Products 0/4
Compare Model   Output Voltage Current Power Additional Info
Compare 56YSL20F-2400625
56YSL20F-2400625
 24V DC 0.625A 15W Download Pdf
Compare 56YSL20F-1201670
56YSL20F-1201670
 12V DC 1.67A 20W Download Pdf
Compare 56YSL20F-2400833
56YSL20F-2400833
 24V DC 0.833A 20W Download Pdf
